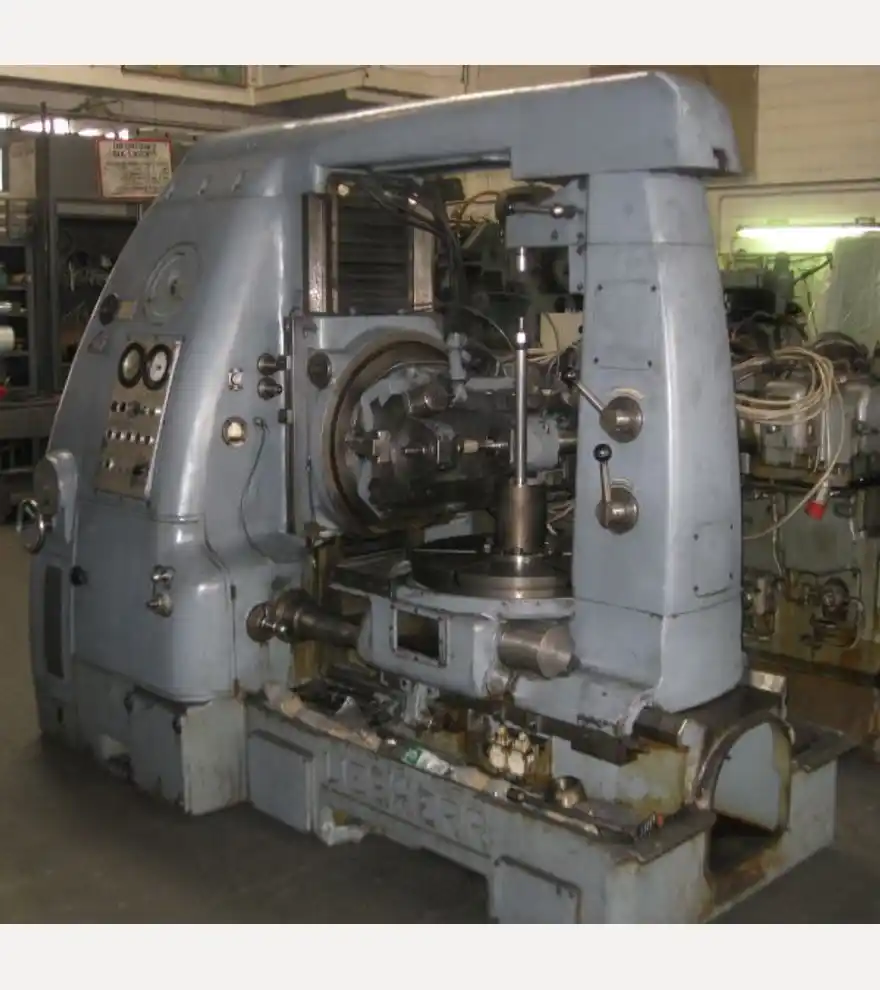

LIEBHEER S500 Automatic Cycle Gear Hobbing Machine (Germany)

Equipment Detail

PRICE ON REQUEST
WHATSAPP US 0122881693 FOR MORE DETAILS

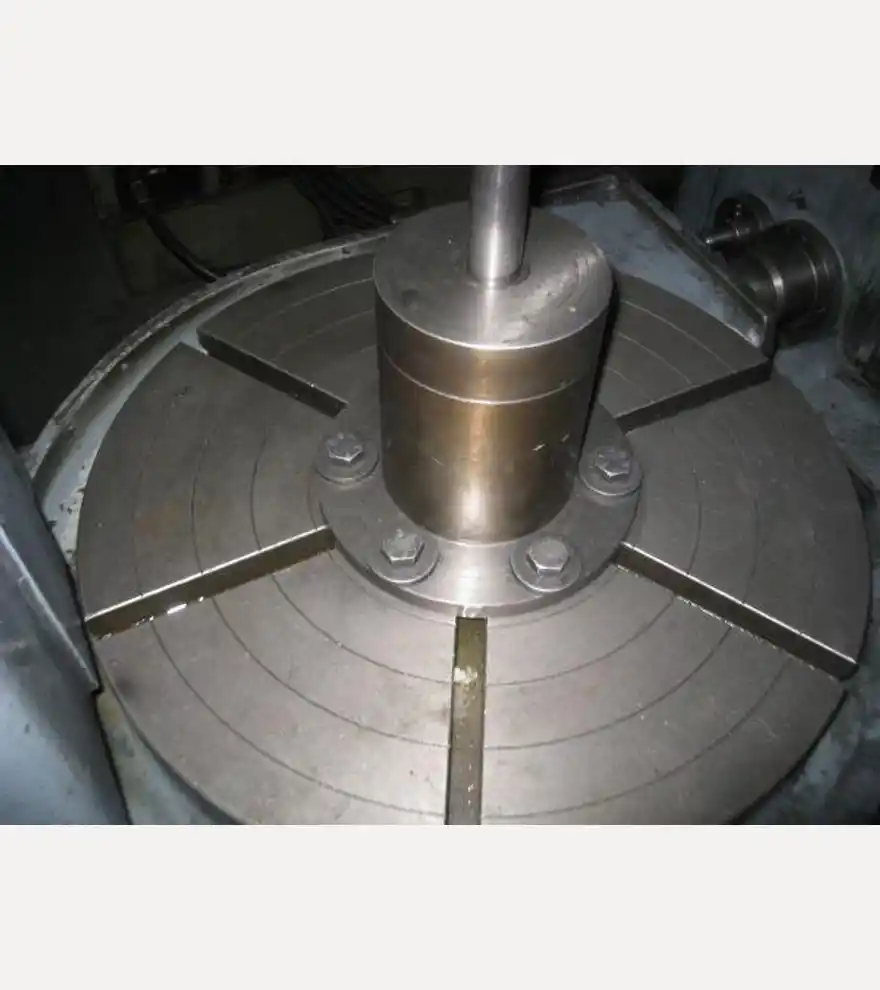

Max. Workpiece dia. With supporting column……………………...................…15¾”
Max. Travel of hob slide (=max. width of gear)………......................................14 11/16”
Max. Pitch when heavy duty hobbing…………………..............4,23DP
Max. Pitch when normal duty hobbing………………….......…3,175DP

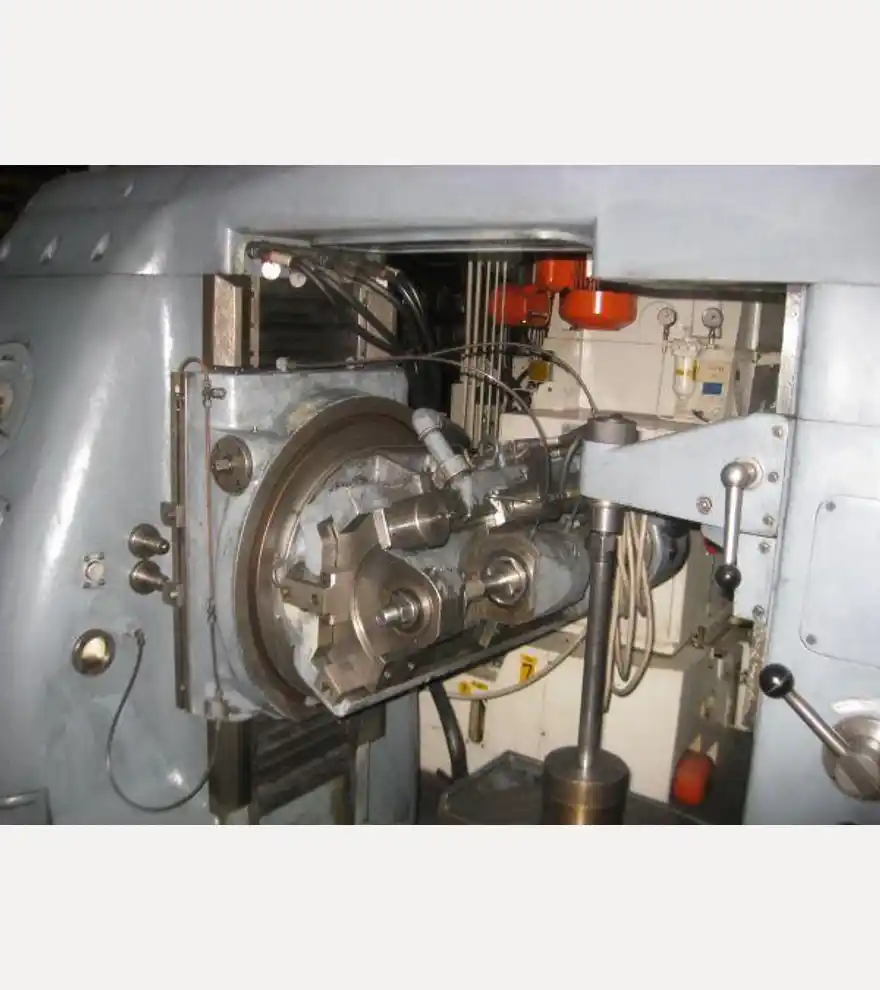

Taper of hob spindle……………………………….… .…….................Morse Taper No. 5
Hob Arbor with hob mounting service……………………….……........................1¼”
Max. Dia of hob…………………………………………….…………....................7¼”
Max. Length of hob………………………………………….……….......................6¾”
Max. Shifting way of hob…………………………………….……......…................4¾”
Hob Speed infinitely variable from 40-220RPM
