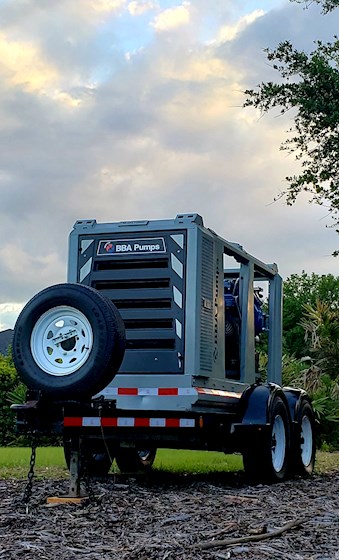

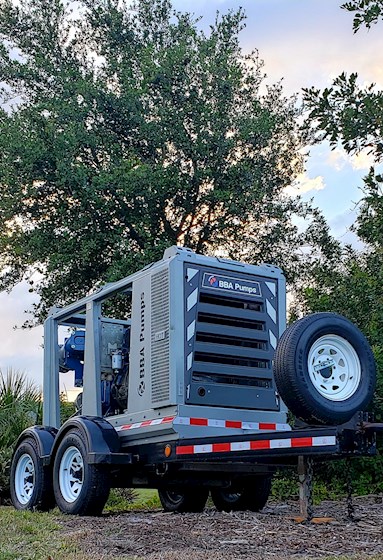

2017 BBA PUMPS BA150E D285

2017 BBA PUMPS BA150E D285 Description

Fully automatic priming system, the BA series pumps
quickly prime and re-prime, even from dry conditions.
The heavy build style of both pump and canopy make
the BA range perfect for use in the demanding
construction market.


TECHNICAL SPECIFICATIONS
Pump type............................BA150E D285
Max. flow..............................2100 US GPM (477 m3
/hour)
Max. head............................125 feet / 54 PSI (38 mwc)
Impeller type ........................Open impeller
Solids handling ....................3.15 inch (80 mm)
Pump casing........................Cast iron GG20
Impeller................................Chrome Moly 42CrM04
Self-cleaning wear plate ......Chrome Moly 42CrM04 (cutter slots)
Pump shaft...........................C45
Shaft seal.............................Mechanical seal
Seal faces ............................Tung/Sic
Seal rubbers ........................Viton
BBA priming system
Pump type............................BBA MP50 Diaphragm pump
Air handling capacity ...........30 CFM (50 m3
/h)
Max. vacuum .......................29 inHg (8.5 m)
Drive ....................................Toothed belt (continuous drive)
Float box ..............................Aluminium
Non return valve ..................Cast iron GG25
Check valve disc..................Buna-N
Engine brand .......................Perkins
Max. power output ...............80Hp
Variable engine speed.........1300 - 1900 RPM
Fuel consumption ................220 g/kWh
Displacement.......................1,952 cm3
Number of cylinders.............4
Aftertreatment......................EGR, DOC
Exhaust emission US ..........Tier 4 Final
